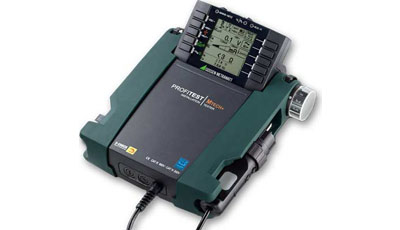

Test instrument za VDE 0100 / IEC 60364.6
Širok opseg mernih uređaja dozvoljava korišćenje ispitnih instrumenata u svim naizmeničnim i 3-faznim električniom sistemima sa naponima od 65 do 500 V i frekvencijama od 15.4 do 420 Hz.
- Merenje petlje i linijske impedanse
- Merenje otpornosti izolacije korišćenjem nominlnog napona sa promenljivim ili rastućim ispitnim naponom
- Merenje malih otpornosti
- Merenje otpornosti uzemljenja
- Merenje isolacije stajuće površine
- Univerzalni sistem konekcije
Novo: ProfiScan – aplikacija za
android smartfone i tablet računare
Video:
Ispitivanje instalacije sa PROFITEST-om
Testing of residual current devices (RCCBs)
- Measurement of contact voltage without tripping the RCCB.
Contact voltage is measured with reference to nominal residual current using 1/3 of the nominal residual current value.
- Tripping test with nominal residual current, tripping time measurement
Additional Functions as Compared with the PROFITEST MBASE+
Special testing for systems and RCCBs
- Testing of equipment and RCCBs with rising residual current including indication of tripping current and contact voltage at the moment the RCCB is tripped
- Testing of RCCBs with: ½×, 1×, 2×, 5× IΔN
- Testing of RCCBs which are suitable for pulsating residual direct current; testing is conducted with positive or negative half-waves.
- Testing of RCCBs with adjustable residual current for determining contact voltage
Testing for special RCDs
- Selective S, SRCDs, PRCDs (Schukomat, Sidos and others), types G/R, AC, A, F, Type B, B+, EV
Testing of RCCBs in IT systems
Special features of the PROFITEST MASTER family show/hide
Type comparison table show/hide
Katalog tester električnih instalacija PROFiTEST MASTER (MBASE, MTECH, MPRO, MXTRA) na srpskom jeziku
Prospekt tester električnih instalacija PROFiTEST MASTER Serije (MBASE+, MTECH+, MPRO, MXTRA)
